We are one of the most professional and first hand source supplier for genuine Original Atlas Copco parts and air compressor in China . Have more than 18 years of sales and maintenance experience in atlas copco air compressor field.
We have very good relationship with Atlas Copco we make order to atlas directlys so we can get good discount prices for customers.

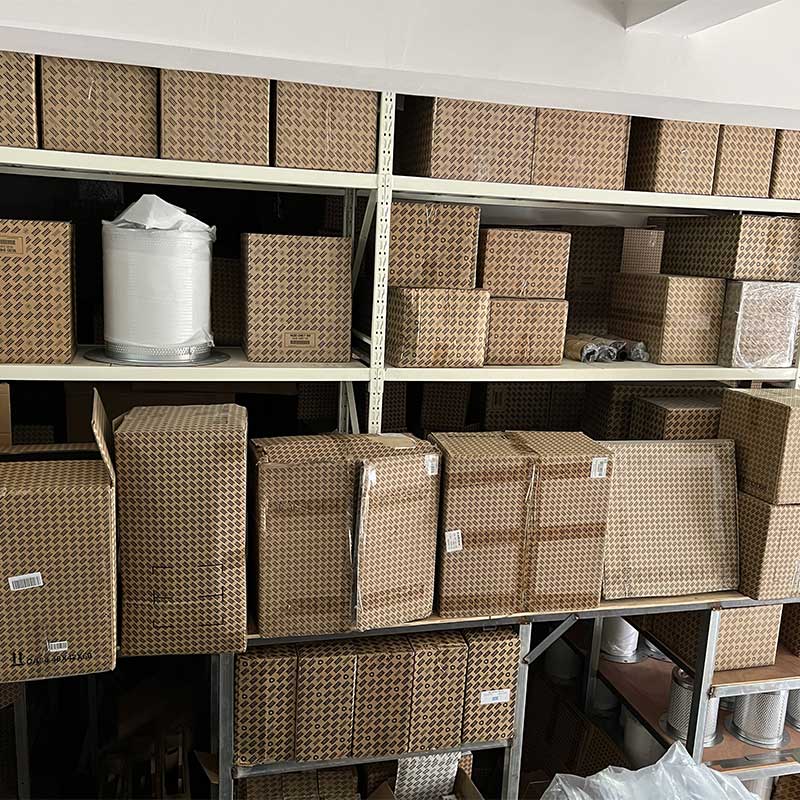

we supply Atlas Cocpo 100% genuine original product with special price and we have big warehouse about 3000 square meter for stock 80% commomly use products quick delivery.we also have Professional technical support .our have competitive prices quickly delivery and fast response in a professional way so we have win lots of client from all over the wolrd in the past years.We guaranteed better prices than other supplier.
GA Premium compressor• High performance Free Air Delivery.• Premium quality at the lowest initialinvestment.• Integrated refrigerant dryer.• Elektronikon® Touch or Swipe controller.GA+ Industry-leading performance• Best-in-class Free Air Delivery.• Lowest energy consumption for applicationswith a stable air demand.• Low noise emission suitable for workplaceinstallation.• Integrated refrigerant dryer.• Elektronikon® Touch controller.

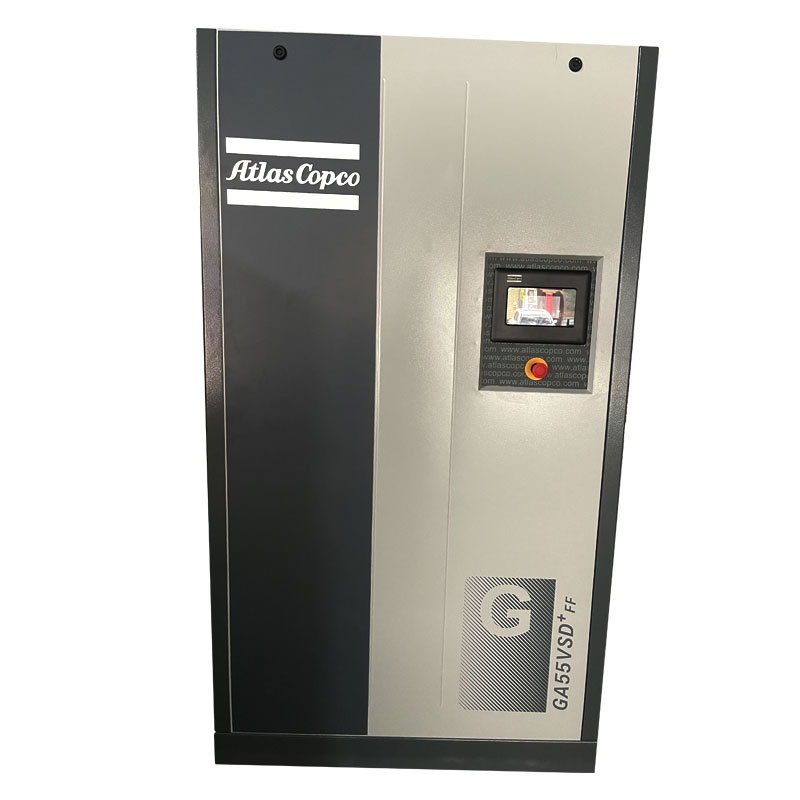

Atlas Copco’s GA compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD+, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
The next-generation Elektronikon operating system offers a great variety of control and monitoring features that allow you to increase your compressor’s efficiency and reliability. To maximize energy efficiency, the Elektronikon® controls the main drive motor and regulates system pressure within a predefined and narrow pressure band.
• Improved ease of use: intuitive navigation with clear pictograms and extra 4th LED indicator for service.
• Visualization through web browser using a simple Ethernet connection.
• Easy to upgrade.
• Automatic restart after voltage failure.
• Delayed Second Stop function.
• Dual pressure set point.
• Built-in SMARTLINK online monitoring.
• Option to upgrade to the advanced Elektronikon®
• Touch controller.
The screw air compressor main specification as follows:1. Main frame: Sweden Atlas2. Bearing: 100% Sweden SKF (LIFE60000hours)3. Solenoid valve: CEME Italy4. Electro motor: ABB WOLONG5. Thermostat valve: Austria Hoerbiger6. Pressure sensor: Switzerland Huba imported with original7. Container: Shanghai shenjiang8. Oil filter: Germany MANN Company imported with original9. Oil and gas separator: Germany MANN Company imported with original10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original11. Suction valve: Sweden Atlas imported with original12. Pressure valve: Hoerbiger Austria Company13. PLC: Schneider Electric France14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
| Basic Information | Power Supplier: | 380V/3Ph/50Hz or 60HzCustomized | |||||||||||||
| Discharge Temperature: | For Air cooling < Environment Tempreture+15 C For water Cooling < 40 C | ||||||||||||||
| Transmission: | BD= Belt Driven D-D = Direct Driven | ||||||||||||||
| Cooling Modle: | A=Air Cooling W=Water Cooling | ||||||||||||||
| No. of Compressor stage: | S-S= Single Stage Compression D-S= Double Stage Compression | ||||||||||||||
| Modle No. | Air Discharge | Pressure Discharge | Basic Information | Noise Level | Motor Power | Starting Modle | External Dimensions | Net weight | |||||||
| M3/Min | l/s | bar | psig | dB(A) | kw | hp | L(mm) | W(mm) | H(mm) | kgs | |||||
| GA 30+ | 6.00 | 100 | 7.50 | 109 | S-S | A/W | B-D | 65 | 30 | 40 | Y-Triangle Start | 1766 | 970 | 1800 | 817 |
| 5.40 | 91 | 8.50 | 116 | ||||||||||||
| 4.90 | 82 | 10.00 | 145 | ||||||||||||
| 4.50 | 75 | 13.00 | 189 | ||||||||||||
| GA 37+ | 7.20 | 120 | 7.50 | 109 | S-S | A/W | B-D | 65 | 37 | 50 | 1766 | 970 | 1800 | 902 | |
| 6.60 | 111 | 8.50 | 116 | ||||||||||||
| 6.00 | 100 | 10.00 | 145 | ||||||||||||
| 5.40 | 91 | 13.00 | 189 | ||||||||||||
| GA 45+ | 8.80 | 146 | 7.50 | 109 | S-S | A/W | B-D | 66 | 45 | 60 | 1766 | 970 | 1800 | 970 | |
| 8.00 | 134 | 8.50 | 116 | ||||||||||||
| 7.50 | 126 | 10.00 | 145 | ||||||||||||
| 6.70 | 111 | 13.00 | 189 | ||||||||||||
| GA 55+ | 11.00 | 184 | 7.50 | 109 | S-S | A/W | B-D | 66 | 55 | 75 | 2248 | 1080 | 1955 | 1358 | |
| 10.00 | 166 | 8.50 | 116 | ||||||||||||
| 8.50 | 141 | 10.00 | 145 | ||||||||||||
| GA 75+ | 14.90 | 248 | 7.50 | 109 | S-S | A/W | B-D | 68 | 75 | 100 | 2248 | 1080 | 1955 | 1413 | |
| 13.60 | 227 | 8.50 | 116 | ||||||||||||
| 12.30 | 204 | 10.00 | 145 | ||||||||||||
| 10.90 | 182 | 13.00 | 189 | ||||||||||||
